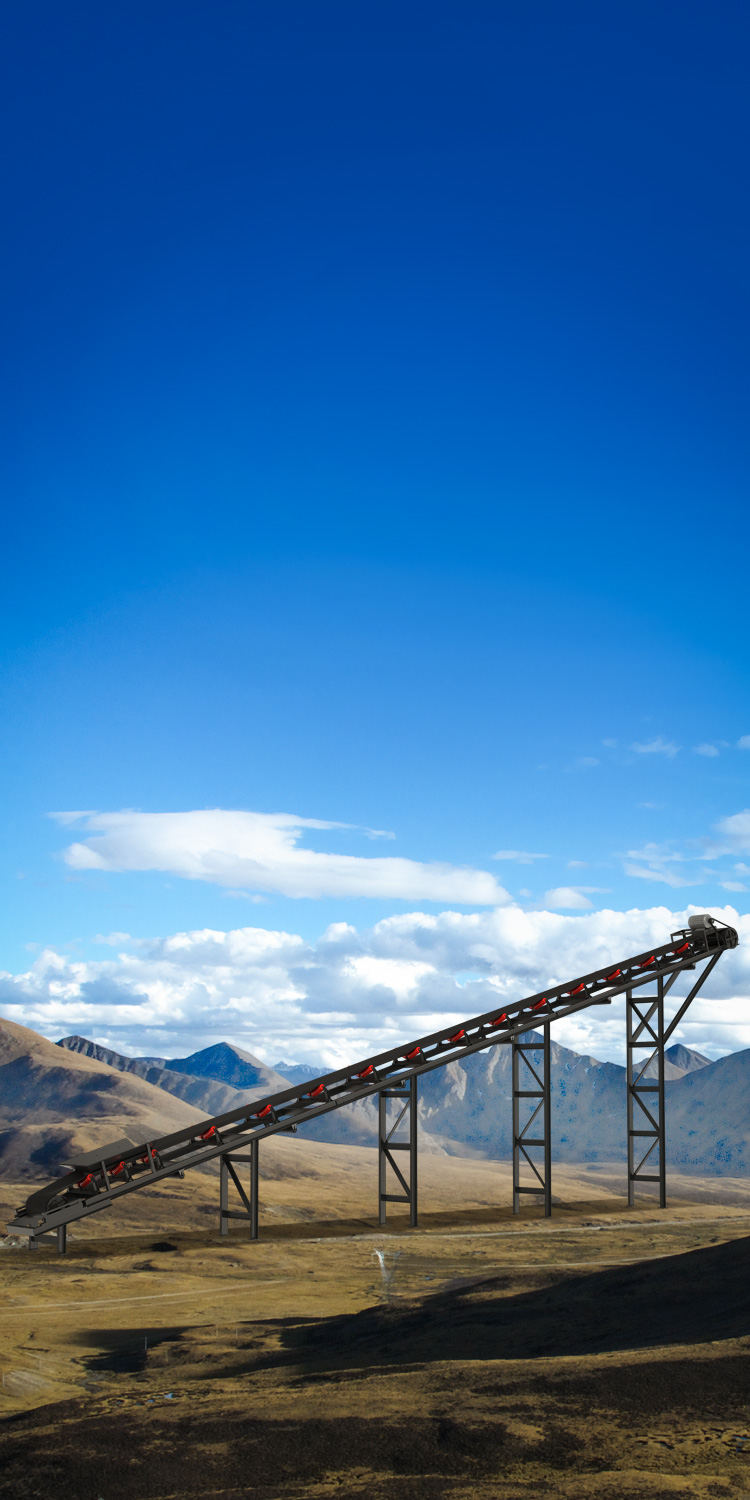

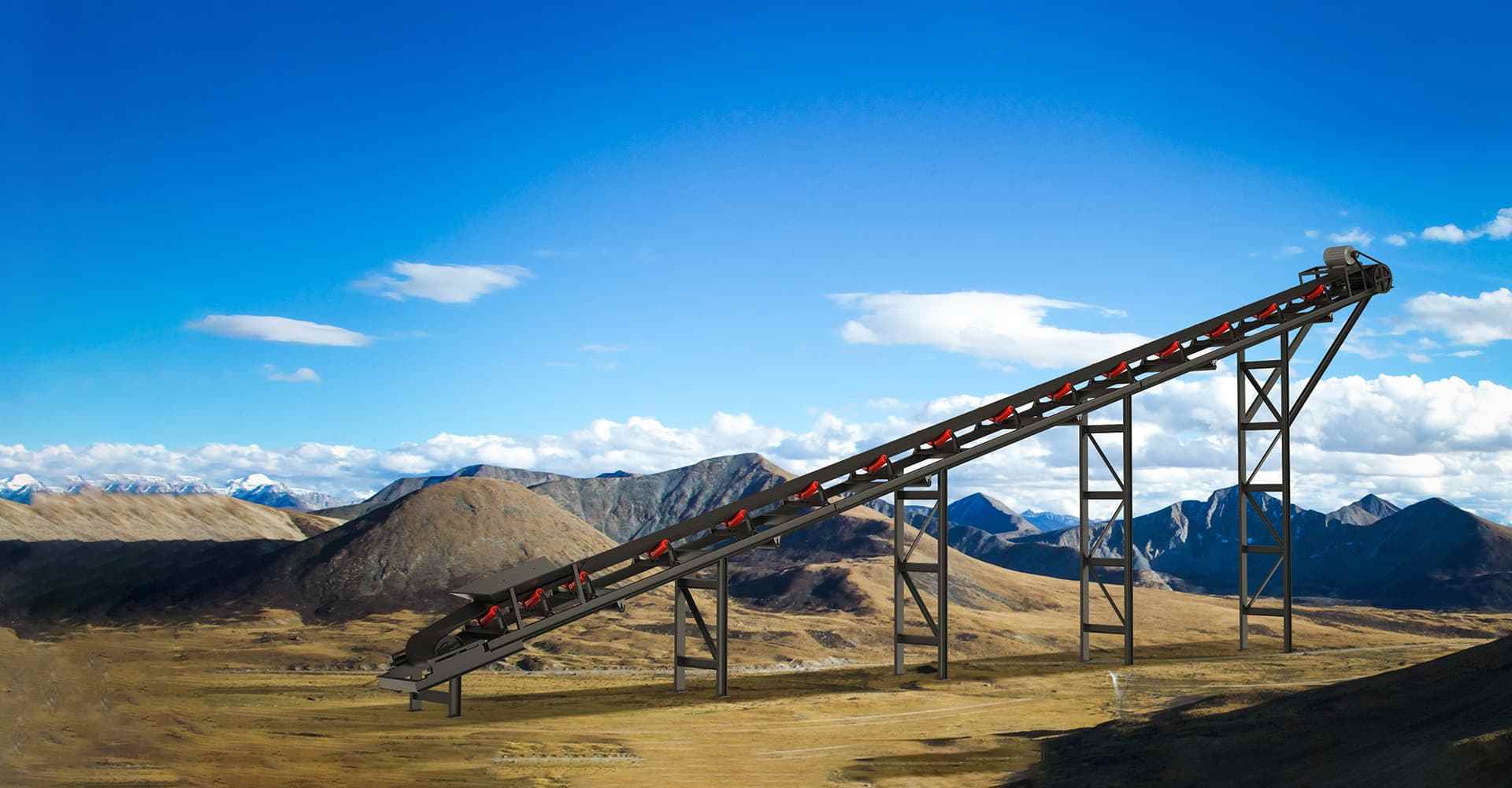

TD SERIES BELT CONVEYOR
| 胶带宽度 (mm) | 输送长度 (m) 功率(kw) |
输送速度 (m/s) | 输送量 (t/h) | ||
| 400 | ≤10 2.2 |
10-15 3-4 |
15-30 4-7.5 |
1.25-2.0 | 30-60 |
| 500 | ≤10 3 |
10-15 4-5.5 |
15-30 5.5-7.5 |
1.25-2.0 | 40-80 |
| 650 | ≤10 4 |
10-15 7.5 |
15-30 7.5-11 |
1.25-2.0 | 80-120 |
| 800 | ≤10 5.5 |
10-15 7.5 |
15-30 7.5-15 |
1.25-2.0 | 120-200 |
| 1000 | ≤10 7.5 |
10-20 7.5-11 |
20-40 11-22 |
1.25-2.0 | 200-320 |
| 1200 | ≤10 11 |
10-20 11-15 |
20-40 15-30 |
1.25-2.0 | 290-480 |
| 1400 | ≤10 15 |
10-20 15-22 |
20-40 22-45 |
1.25-2.0 | 400-680 |
| 1600 | ≤10 18.5 |
10-20 18.5-30 |
20-50 30-75 |
1.25-2.0 | 600-1080 |
| 1800 | ≤10 22 |
10-20 22-45 |
20-50 45-110 |
1.0-2.0 | 800-1500 |
| 2000 | ≤10 30 |
10-20 30-55 |
20-50 55-13 |
1.0-2.0 | 1000-2000 |
| 2400 | ≤10 45 |
10-20 45-75 |
20-50 75-185 |
1.0-2.0 | 1500-3000 |
注：产量根据不同物料，进料粒度等因素其结果将有所不同
| 胶带宽度 (mm) | 输送速度 (m/s) | 输送量 (t/h) |
| 400 | 1.25-2.0 | 30-60 |
| 500 | 1.25-2.0 | 40-80 |
| 650 | 1.25-2.0 | 80-120 |
| 800 | 1.25-2.0 | 120-200 |
| 1000 | 1.25-2.0 | 200-320 |
| 1200 | 1.25-2.0 | 290-480 |
| 1400 | 1.25-2.0 | 400-680 |
| 1600 | 1.25-2.0 | 600-1080 |
| 1800 | 1.0-2.0 | 800-1500 |
| 2000 | 1.0-2.0 | 1000-2000 |
| 2400 | 1.0-2.0 | 1500-3000 |
注：产量根据不同物料，进料粒度等因素其结果将有所不同
